Description

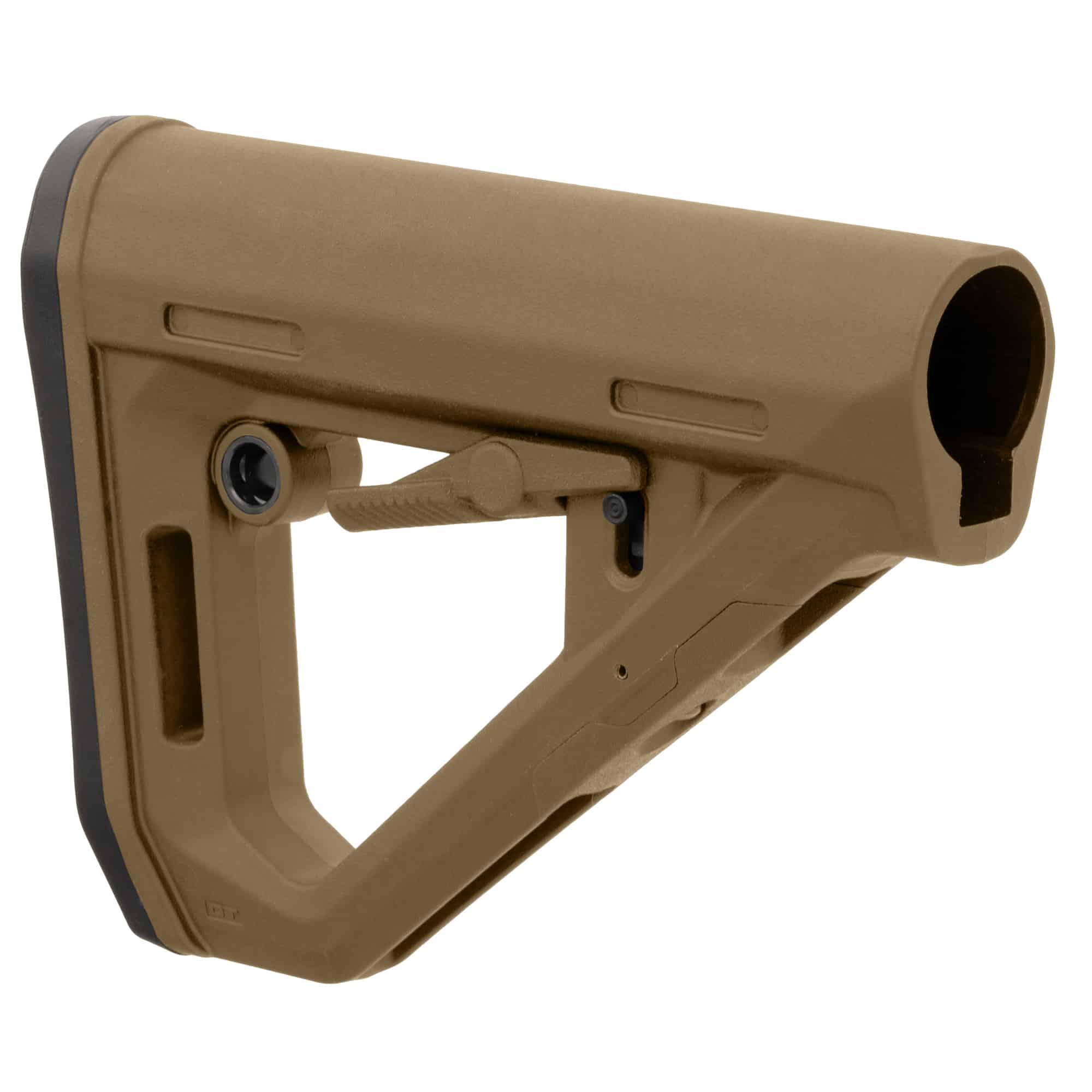

The DT Carbine Stock is a drop-in replacement buttstock for AR15/M16/M4 carbines (or comparable platforms) equipped with Mil-Spec profile receiver extensions. It merges the best features of the SL® and CTR® product lines with its new dual tensioning technology, which provides greater strength and security for a more rugged and stable platform that’s easy to adjust.
The DT Stock is an A-frame style carbine stock that features an auto-engaging friction lock that’s reflexive and inert during adjustment. This produces additional tension on the buffer tube, providing extra tight lockup that minimizes movement between the stock’s lock pin and receiver extension. The result is increased durability in case of severe impacts and quick, smooth, and frictionless length-of-pull adjustments on the fly. Other features include a unique, non-slip butt-pad that matches the footprint of the SL line and incorporates the optimized curvature from the CTR, an ambidextrous adjustment lever, a rotation-limiting QD sling mount, and a 1.25” footman’s loop.
Made in the USA.
NEXT GEN AR STOCK
Mounts on Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others
NEW LOP-ADJUSTMENT DUAL TENSION LOCKING SYSTEM
Improves ease of adjustment while securing LOP placement, limiting secondary movements, and improving durability
Single, anti-snag ambidextrous control lever
ENHANCED ERGONOMICS
Newly designed non-slip butt-pad with optimized curvature allows for easier shoulder transitions and better fit when using body armor
Sloping cheek weld combines a slim profile with user comfort
Side mounting slots accept optional Magpul CTR® Cheek Risers for NON AR15/M4 applications
SLING POINT VARIETY
Compatible with Magpul ASAP®, ASAP® QD and other receiver-mount sling attachments
Rear 1.25″ sling loop
Rotation-limiting, integral push-button QD swivel sling mount accommodates up to 1.5″ swivels (ambidextrous)
TECHNICAL SPECIFICATIONS
| Platform | AR10, AR15, M4, M16, M110, SR25 |
|---|---|
| Compatibility | Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others* |
| LOP, M4 Collapsed | ~10.6 in. |
| LOP, M4 Extended | ~13.9 in. |
| LOP Adjustment Range | 3.3 in. |
| Length, max | 7.0 in. |
| Height, max | 5.3 in. |
| Weight | 9.7 oz. |
| Weight, w/ receiver extension | ~13.7 oz. |
| Width, max | 1.6 in. |
| Other Specs | *Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer.
NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): Mil-Spec and Commercial-Spec. The DT Carbine Stock will only fit with the common Mil-Spec tube. |
