Description

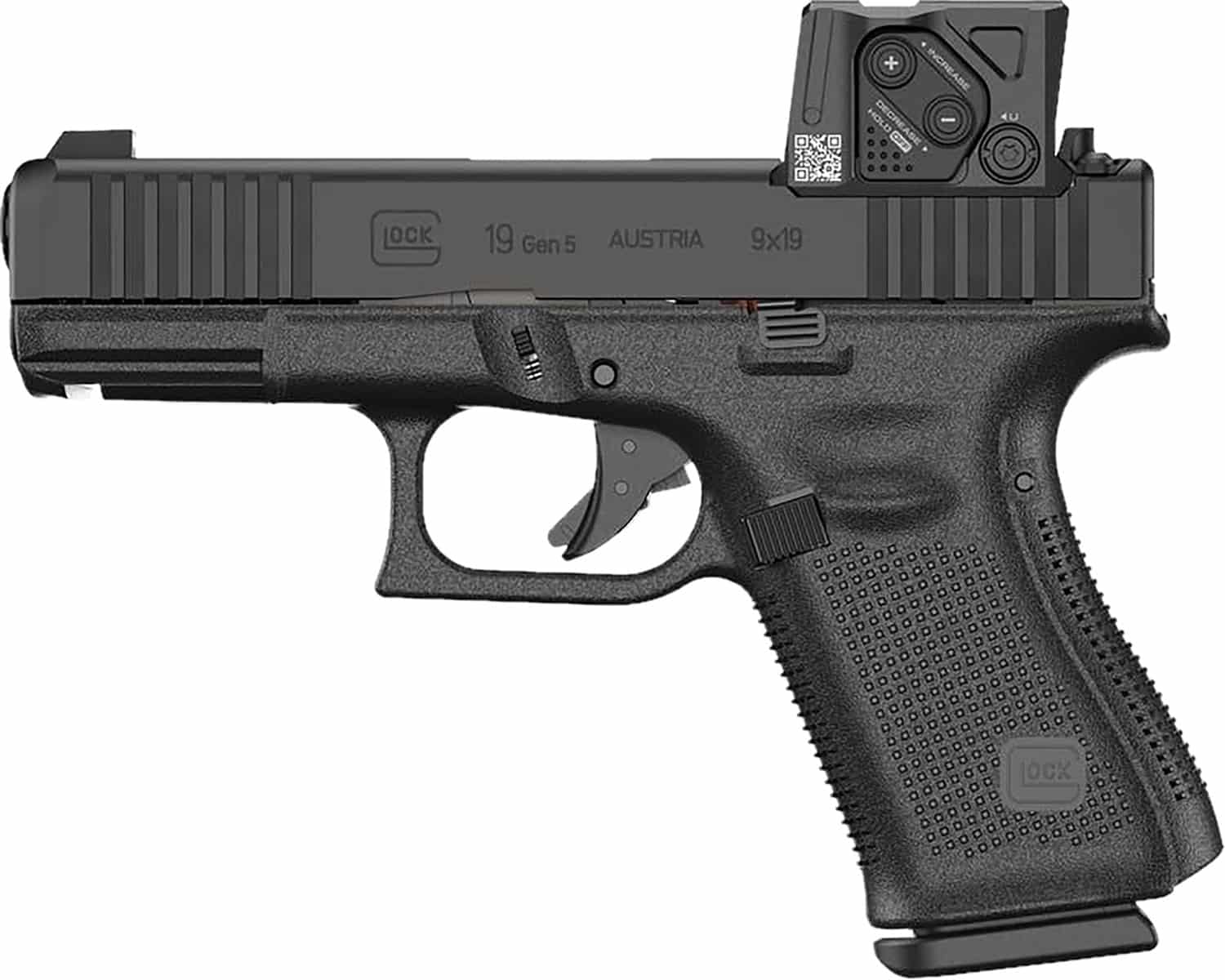

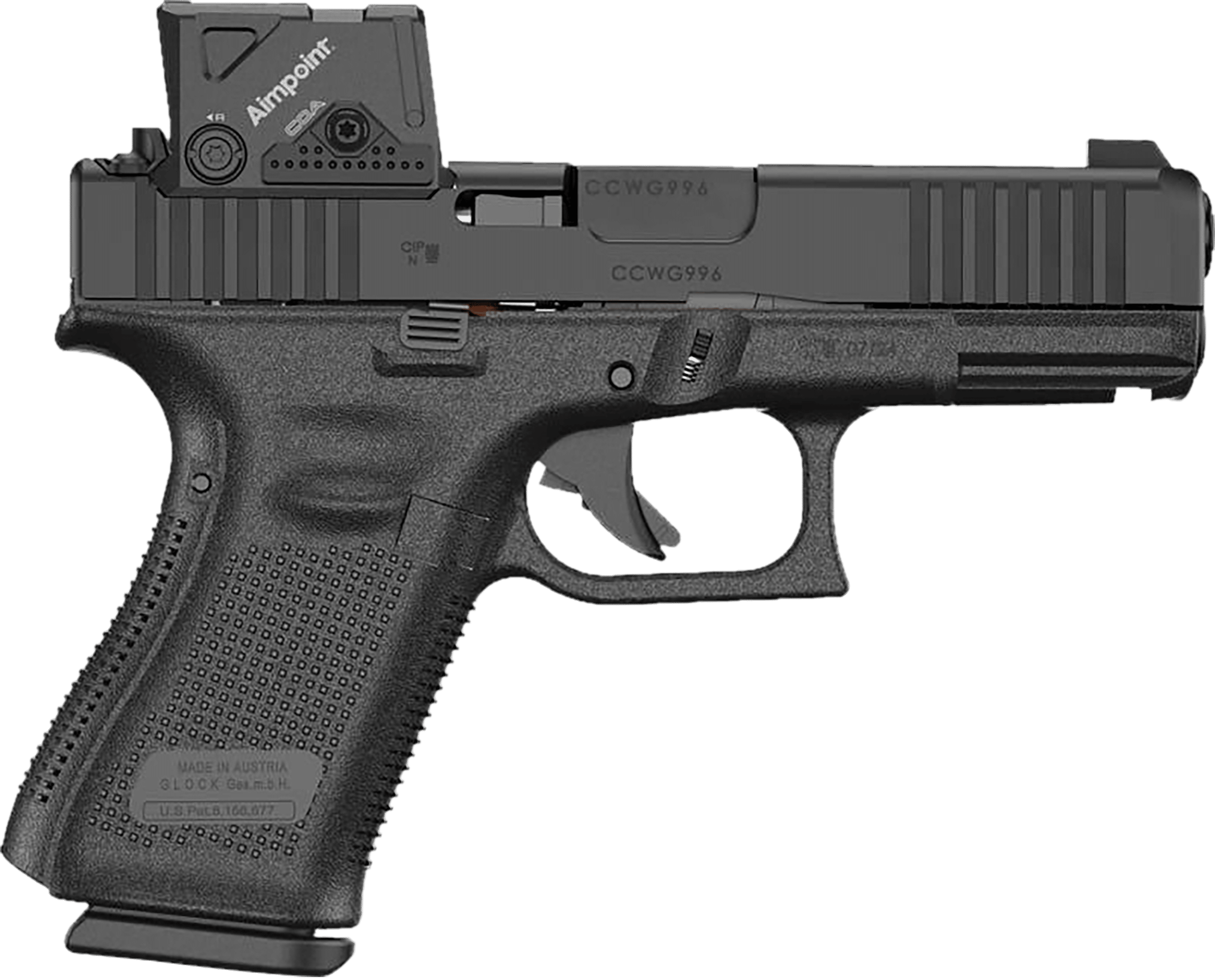

Introducing the new GLOCK G19 Aimpoint® COA™ Combo, featuring the new A-CUT™ interface that neutralizes movement of the optic while providing a lower mount with iron sight index. This is a package solution, combining the proven GLOCK Perfection of a G19 Gen5 with a NEW optic from Aimpoint utilizing a NEW collaborative mounting solution for optimal performance.
A-CUT™ MOUNTING SOLUTION – New patented standard A-Cut™ Mounting solution.

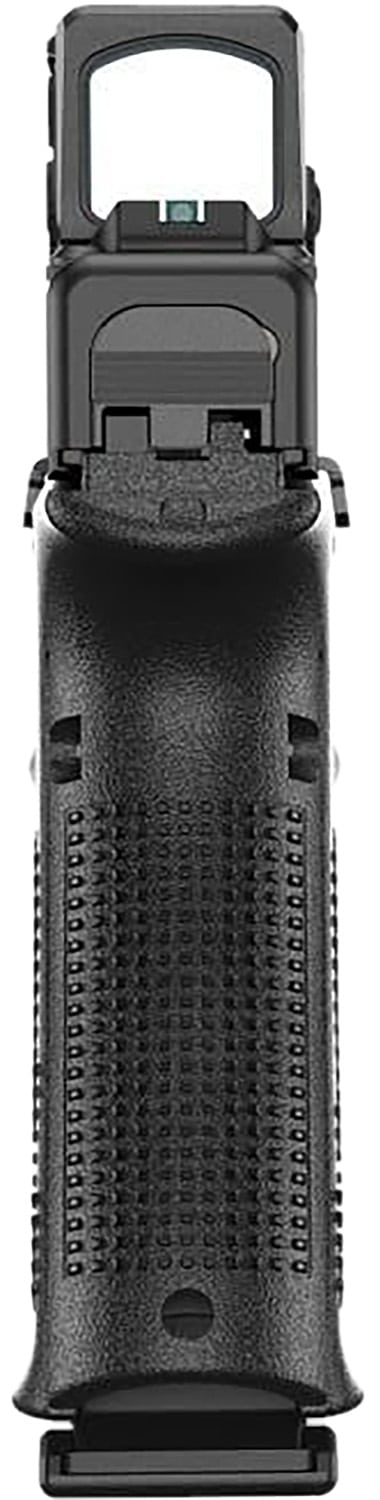

CO-WITNESS WITH IRON SIGHTS – Ease of use for all shooters as red dot has same index as iron sights.
Sleek Design – Ultra compact, sleek design allows for ease of unholstering under concealment.
Fully enclosed design – Completely sealed from environmental elements and contaminants. Submersible to 25 m / 82 ft.
Tactile intensity buttons – Brightness settings: 1-4 NVD, 5-12 Daylight. Easy to use with gloves. Intuitive design.
Windage & elevation adjustments – Clicks you can hear and feel with each turn. Easily zeroed with standard T10 Torx tool.
Quick access battery tray – 5 years of constant-on use. Ability to replace battery without removing sight from pistol.
The COA™
The Aimpoint ® COA™ maintains the ruggedness and reliability of the ACRO® series in a smaller, more compact form. This concealed carry optic features a fully enclosed emitter providing superior protection against debris, dust and other environmental elements – making it an excellent choice for professional, personal protection, and sport shooters alike.
- Optimized for concealed carry
- Crisp 3.5 MOA dot+ co-witness
- Enclosed emitter for ruggedness and durability
- A-CUT Mounting Interface eliminates optic movement
Optimized for concealed carry
Crisp 3.5 MOA dot+ co-witness
Enclosed emitter for ruggedness and durability
A-CUT Mounting Interface eliminates optic movement
The GLOCK G19
- The GLOCK 19 Gen5 pistol in 9 mm Luger is ideal for a more versatile role due to its reduced dimensions. The new frame design without finger grooves still allows to instantly customize its grip to accommodate any hand size by mounting the different Beavertail Backstraps.
- The slide has the superior GLOCK hard-surface nDLC finish in non reflective black. It comes with front serrations (FS) which provide an additional tactile surface choice when manipulating the slide giving the operator positive traction even with wet or sweaty hand.
- The reversible magazine catch and ambidextrous slide stop lever make it deal for left and right-handed shooters.
- Every G19 Gen5 features the match-grade GLOCK marksman Barrel (GMB) delivering increased accuracy with polygonal rifling and an improved barrel crown.
| Caliber | 9x19mm |
| System | Safe Action® |
| Mag. Capacity Standard: | 15 Optional: 15 / 17 / 24 / 31 / 33 |
| Barrel Length | 102 mm | 4.02 inch |
| Weight without magazine | 610 g | 21.52 oz |
| Weight with empty magazine | 670 g | 23.63 oz |
| Weight with loaded magazine | 855 g | 30.16 oz |
| Trigger Pull | 26 N |
| Length (Overall) | 185 mm | 7.28 inch |
| Slide Length | 174 mm | 6.85 inch |
| Width (Overall) | 34 mm | 1.34 inch |
| Slide Width | 25.5 mm | 1.00 inch |
| Height incl.Mag. | 128 mm | 5.04 inch |
| Line of Sight | 153 mm | 6.02 inch |
The A-CUT™
Aimpoint® has developed a unique cut that enables the sight to be mounted deeper into the slide enabling the shooter to use the iron sight as well as the red dot (“co-witness”). This solution provides extreme stability.
- The Aimpoint® A-CUT™ interface provides a secure and dependable mounting solution for the Aimpoint® COA™ red dot reflex optic ensuring repeatable accuracy.
- The unique mounting design from Aimpoint® works perfectly with GLOCK® precision pistols.
- The direct cut eliminates the sheering effect impacting many pistol mounted optics. The integrated grooves of the optic to slide ensure ultimate stability.
Legendary Aimpoint® Battery Life
- The COA uses a standard CR2032 – 3 volt battery
- Press any of the push-buttons to turn the sight ON.
- Hold – for 1.5 seconds to turn the sight OFF.
- The sight will always turn on at setting 8 at 12.
Unwanted Button Press Safety
This feature is to prevent accidental button presses from holsters, clothing, or body. When sight is on; the first button press activates the user interface. In active state the user can increase/decrease red dot intensity. The active state lasts for 4 seconds and resets for each button press.
- Press + or – to activate the user interface.
- Press + to increase red dot intensity.
- Press – to decrease red dot intensity.
- After 4 seconds the user interface is locked.
Auto Step Down feature
To save battery time the Auto Step Down feature decrease the dot intensity one step every 2 hours if no buttons have been pressed. This functionality is active when the sight is switched on and the intensity level for the red dot is above 9.
