Description
The Revolution 9 and 45 silencers were first to market with the modular length feature concept. The removable booster extension allows the user to configure the length of the suppressor to fit their needs. The silencer is user serviceable ensuring long, high performance service life. The front caps can be interchanged for a smaller 22 caliber front cap, available separately. 17-4 stainless heat treated baffles, with anti-rotation RTZ (Return To Zero) Geometry features, ensure maximum strength and sound performance. The booster assembly includes a piston for a turnkey suppressor system out of the box. Included take down tools allow for an easy and satisfying end user maintenance experience. Additional pistons, fixed barrel spacers, an integral 3 lug adapter, and fixed direct thread mounts are available to support the Revolution in any configuration the end user could desire. High quality, industry leading performance, strength, unparalleled feature functionality, build quality, and price make the Revolution a clear winner in the modular class of silencers.

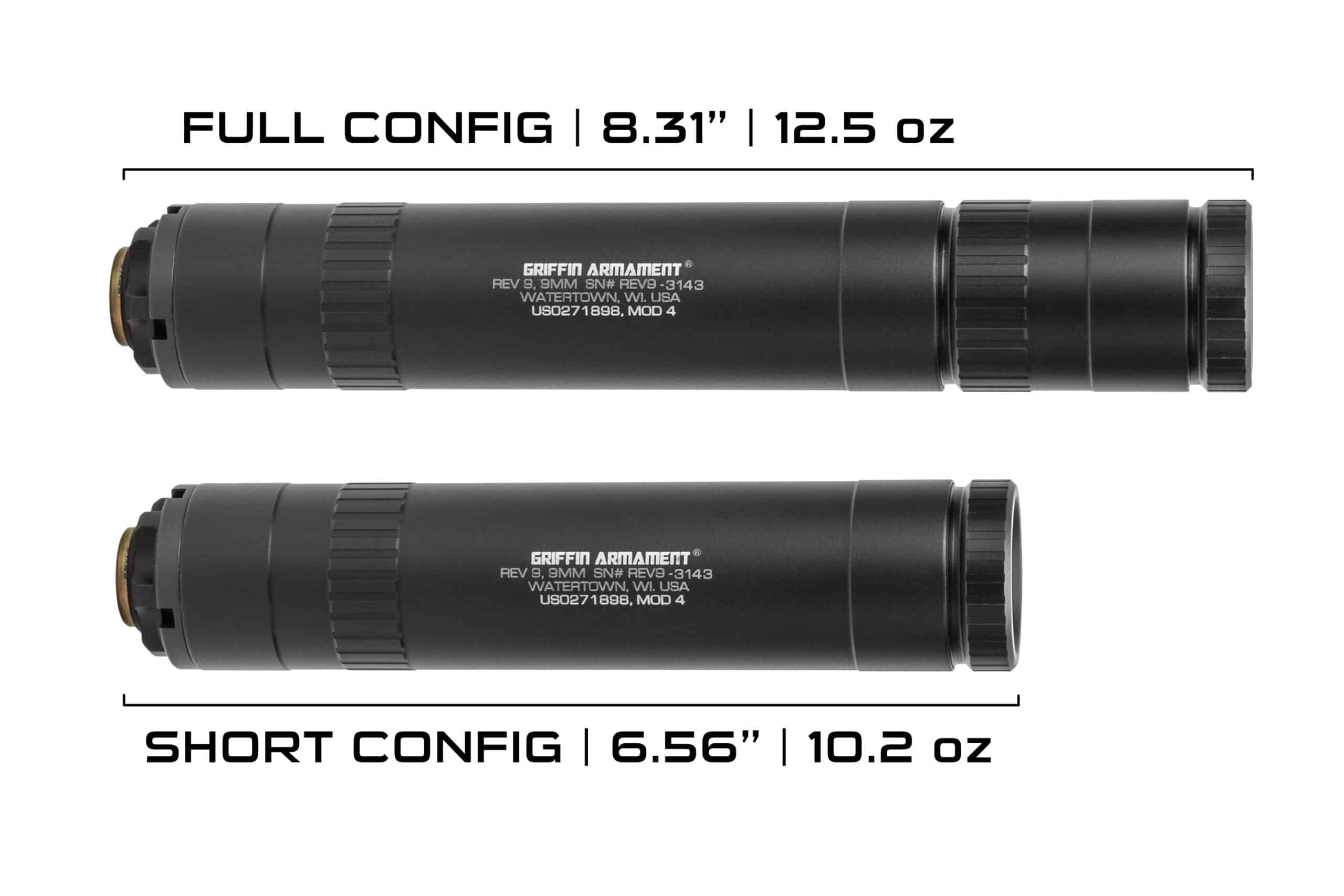

The Revo 9 can also be configured into a short (K) configuration by removing the stainless black oxide external booster housing extension and collapsing the booster housing or 3 lug assembly into the silencer tube. This configuration is best used wet. By adding 5cc’s of rem oil, wire pulling gel, or some other ablative medium sound suppression can be dampened extremely well in the short configuration.
The Revo 9 is shipped in it’s full size configuration with an included CAM-LOK Universal Piston. CAM-LOK Barrel Adapters (sold separately) are offered in many different thread pitches. Additionally our integral 3 lug 9mm QD assembly can be interfaced if desired to run on 9mm MP5’s, AR carbines, or any 9mm wearing a standard 3 lug coupler.
The Return to Zero baffles key together so that every time you disassemble the silencer and put it back together you can achieve the same baffle orientation so that your point of impact shift will remain the same negating the need to re-zero your carbine or pistol after servicing. (applicable to full size configuration)
Additionally the MOD 3 can be fitted with the Taper Mount Minimalist Blast Shield for use with Taper Mount Muzzle devices. Mod 3 REV 9 Serial starts at REV9-0885
Caliber Ratings:
Rev9 9mm full auto rated
Rev9 & 45, ALL configurations below 5 TO 7 ROUNDS then allow to cool to ambient temperature. – These ratings are intended for sporting (hunting) use only.
Revolution Rifle Rating
Full Size w/ K-Spacer & Mini Blast Shield
300 BLK Super 9″
5.56mm 11.5″
7.62×39 14.5″
308 win 18″
K Configuration w/ K-Spacer & Mini Blast Shield
300BLK Sub/Super 16″
5.56mm 16″
7.62×39 16″
308 WIN 20″
3 Lug K and full size
(7.62×39 for CZ527 only)
300 BLK 8″ Sub
300 BLK 16″ Super
5.56mm 16″
INCLUDES:
CAM-LOK UNIVERSAL PISTON
Griffin Revolution Wrench
Front Cap take down tool
** New Revolution Tool is only included with the 3rd Generation (MOD3) of Revolution Silencers.
| Diameter: | 1.375″ |
| Overall Length: | 7.6″ |
| Weight: | 11.2 ounces 9.7oz (short) |
| Materials: | 17-4PH Stainless Steel and 7075 T6 Aluminum |
| Attachment: | booster piston, Griffin 3 Lug assembly, direct thread mounts |
| DB Attenuation: | REV 9 SPL: 127db (Full Length) 124db (Short) |
| Finish: | Mil-Spec Type III Hardcoat Anodizing, Black Oxide, H900 heat treat |
| Full Auto Rated: | Yes |
- 17-4PH H900 heat treated baffles
- Return to Zero baffle Tech
- Configurable size
- Piston, 3 lug mount interfaces, direct thread interfaces
- Griffin Armorers Wrench Included
- Fully shielded silencer tube for ease of cleaning
- Silencer pouch Included
- CAM-LOK piston Included
- Lifetime Warranty
